Steel Frame Structure Warehouse
Steel frame warehouses use high-strength steel as the main support, with excellent load-bearing capacity and durability. It has a light structure, fast construction, can significantly shorten the construction period, and adapt to various industrial and logistics needs. The warehouse design is flexible, the internal space is large, and there is no need for too many support columns, providing more storage and operation space. The steel has been treated with anti-corrosion, has a long service life, and has low maintenance costs, making it an ideal choice for companies to expand their storage facilities.
Product Introduction
Products Description
Steel frame structure warehouse is a modern building form that uses high-strength steel as the main load-bearing structure. It is widely used in industry, logistics and other fields. Its biggest features are high strength and light weight, which can provide excellent load-bearing capacity while reducing the requirements for foundation. This lightweight structure reduces material consumption and brings convenience to the construction site. After the steel is prefabricated in the factory, it can be quickly transported and assembled, significantly shortening the overall construction cycle. Compared with traditional concrete buildings, this kind of warehouse can be put into use faster, helping companies to respond quickly to market demand.
The design flexibility of steel frame warehouses is also very outstanding. Due to the high-strength properties of steel, large-span designs can be achieved inside the building, reducing reliance on internal support columns and providing a more open internal space. This design is particularly suitable for storage of large equipment, raw materials or scenarios that require complex mechanical operations. Enterprises can flexibly adjust the internal layout according to different usage needs to ensure maximum utilization of storage space.
In addition, this kind of warehouse also has good earthquake resistance and wind resistance, which is especially suitable for areas prone to natural disasters. Anti-corrosion treated steel has a long service life and low maintenance requirements, greatly reducing maintenance costs in long-term use. Environmental protection is also a highlight. Steel can be recycled and meets green building standards, making it a sustainable building choice.
Product Specifications
|
1. Opinions |
1) We can supply all kinds of prefab metal warehouse building, steel workshop building, steel frame building, modular house, prefab steel structure, garage., etc, |
|
2) We can also make and develop new parts according to customers' drawings and detailed dimensions. |
|
|

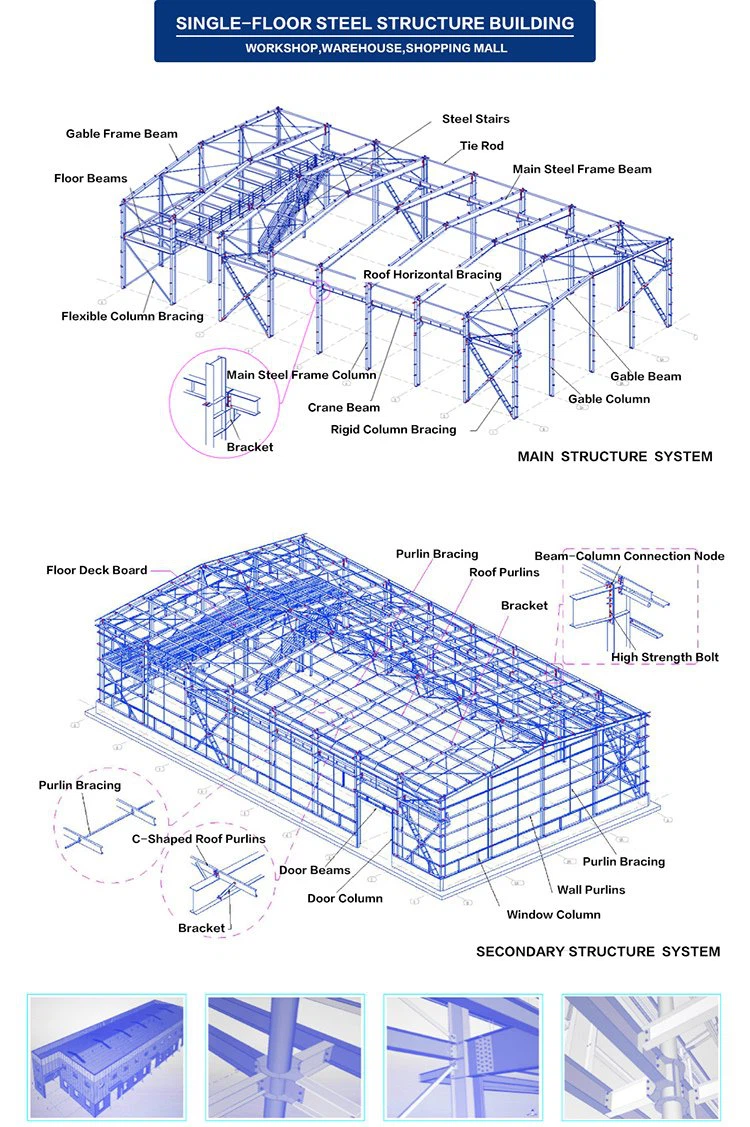

2.Specifications
|
1) Size: MOQ is 100m2, width X length X eave height, roof slope |
|
2) Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors! |
|
|
3) Base: Cement and steel foundation bolts |
|
|
4) Column and beam: Material Q345(S355JR) or Q235(S235JR) steel, all bolts connection. Straight cross-section or Variable cross-section! |
|
|
5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc |
|
|
6) C or z purlin: Size from C120~C320, Z100~Z200 |
|
|
7) Roof and wall panel: Single colorbond corrugated steel sheet--0.326~0.8mm thickness(1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm, |
|
|
8) Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Glavanized gutter, etc |
|
|
9) Surface: Two lays of Anti-rust Painting! |
|
|
10) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ! |
Our Factory
With about less then 10 years development, our production base now has with a total area of 70,000 ㎡, the business scope of the LUTUO are various steel building, such as steel structure workshop, warehouse, multi-story buildings, prefab house, container house, and frame structure for large equipment, ENGINEERING EQUIPMENTS AND MACHINERY, etc. In addition, we also produce various steel structure BUILDING materials, such as H-type steel, color steel sheet, C-type purlin, Z-type purlin, floor deck, different type of WINDOWS & DOORS, as well as steel beam and steel column. Our main products can be divided into three categories, which are heavy steel structure buildings, light gauge steel structure buildings and prefabricated modular buildings. The annual production capacity for different types of buildings can reach 1000 kgs per month.
FAQ
1: How long does it take to build this type of building?
The construction time depends on the size and complexity of the project, but in general, it is built very quickly. Most components are prefabricated in the factory and only need to be assembled on site, which can greatly shorten the construction period. Compared with traditional buildings, the construction time of this type of building is usually only a few months, and even a few weeks for some small projects. Rapid construction is particularly attractive for companies that need to urgently expand storage capacity or start operations as soon as possible.
2: How is the earthquake resistance of this type of building?
The earthquake resistance of this type of building is very good. The steel itself has good elasticity and ductility, which can absorb and disperse external forces when an earthquake occurs, reducing damage to the structure. In addition, the structural design of the steel frame makes the building more stable and can maintain integrity in strong earthquakes. This type of building is very suitable for companies located in earthquake-prone areas, and can provide better protection for material storage and employee safety.
3: Can the design of this type of building be customized according to needs?
Yes, the design of this type of building is very flexible and can be customized according to the specific needs of customers. For example, the interior can achieve a large span and column-free design, which is suitable for storing large equipment or goods. In addition, you can also choose different insulation and heat preservation materials according to your needs, or add additional ventilation and lighting systems to ensure that the warehouse meets the requirements of specific industries. If expansion or renovation is required in the future, it can also be adjusted very conveniently.
4: How long is its service life?
This type of building has a long service life. The steel is treated with anti-corrosion and anti-rust, and can maintain stability under different climatic conditions. Under normal circumstances, this type of building can be used for decades, and the maintenance cost is low during this period. Regular inspections and simple maintenance measures such as surface coating maintenance can further extend its service life. Therefore, from the perspective of long-term investment, this type of building is a very reliable and economical choice.
5: How does this building cope with bad weather?
It performs well in dealing with bad weather, especially extreme conditions such as strong winds, heavy rains and heavy snow. Due to the strength of steel and the rationality of structural design, this type of building can withstand great wind pressure and maintain structural stability under heavy snow accumulation. For areas with strong winds or heavy snow in winter, the building can be additionally designed to ensure that it is safe and reliable under the worst climatic conditions.
6: Is it complicated to maintain this type of building?
It is relatively simple and low-cost to maintain this type of building. The steel is treated to have good rust and corrosion resistance. Daily maintenance mainly involves regularly checking the structure for corrosion or damage and re-coating the surface when necessary. Compared with traditional building materials, this structure is less prone to cracks or deformation, so it requires less frequent maintenance. Overall, the maintenance cost of this type of building is quite affordable.
7: Does this building meet environmental standards?
Yes, this building meets modern environmental standards. First of all, steel is a recyclable material, and the entire building can be disassembled and reused after its service life, reducing the generation of construction waste. Secondly, there is very little construction waste during the construction process, which reduces the impact on the environment. Combined with modern energy-saving design concepts, buildings can be equipped with insulation materials and energy-saving equipment to further reduce energy consumption in operation, which is a sustainable and environmentally friendly building option.
